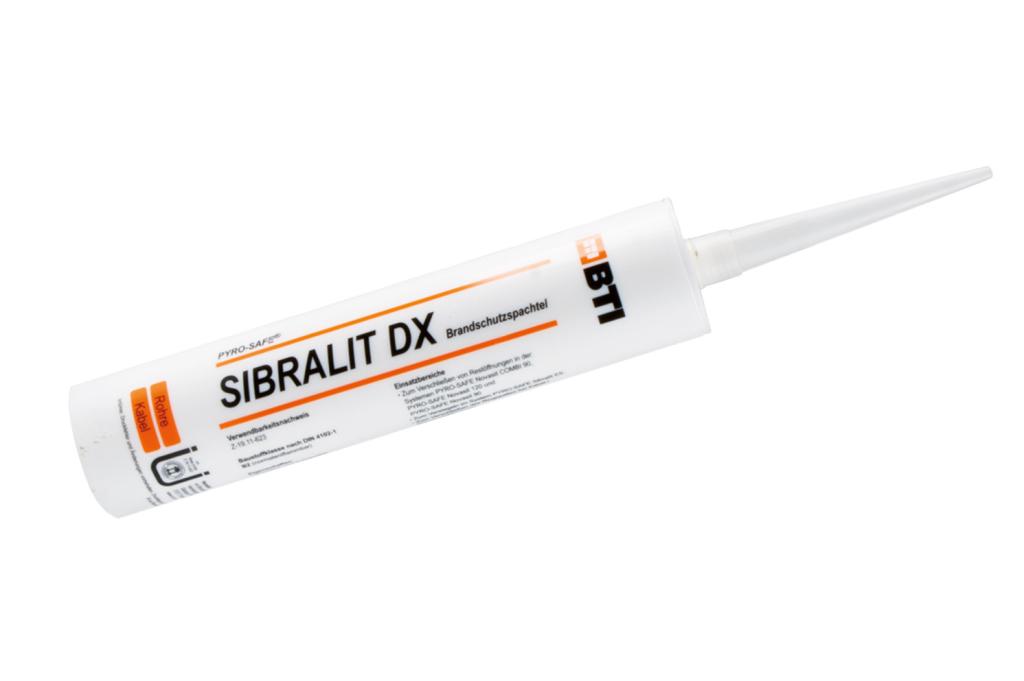

Fire-resistant sealant DX90
Images may differ

Fire-resistant sealant DX90

Product number: 48005009

Fire-resistant sealant DX90, 300 ml cartridge

  • Cable penetration sealing system
  • Fire resistance rating S90 according to DIN 4102-9
  • S90 cable penetration seal
  • Closure of remaining openings during cable retrofitting using Novasit BM 90 Kombi mortar seal
  • Optimal application consistency
  • Allows for easy installation
  • Good stability when filling the opening
  • Color: white
  • Storage life: 18 months if stored frost-free and upright
  • For installation in compliance with regulations, General Construction Approval Z-19.25-2684 must be observed
  • Fields of application: Walls made of masonry, concrete, reinforced concrete, aerated concrete, and ceilings made of concrete, reinforced concrete, aerated concrete
  • Minimum component thickness: Wall / Ceiling: 15 cm
  • Minimum seal thickness: 15 cm
  • Maximum seal size: Wall / Ceiling: 100 cm²
