WAVEPACE® Wallbox-System-2-door-SP-12-Q-LC/APC-48F-HS

Product number: 10419045

Metal wallbox with two separate access areas, 12 LC/APC quad adapters & 48 pigtails, heat shrink

Product-related questions

Description
Datasheet

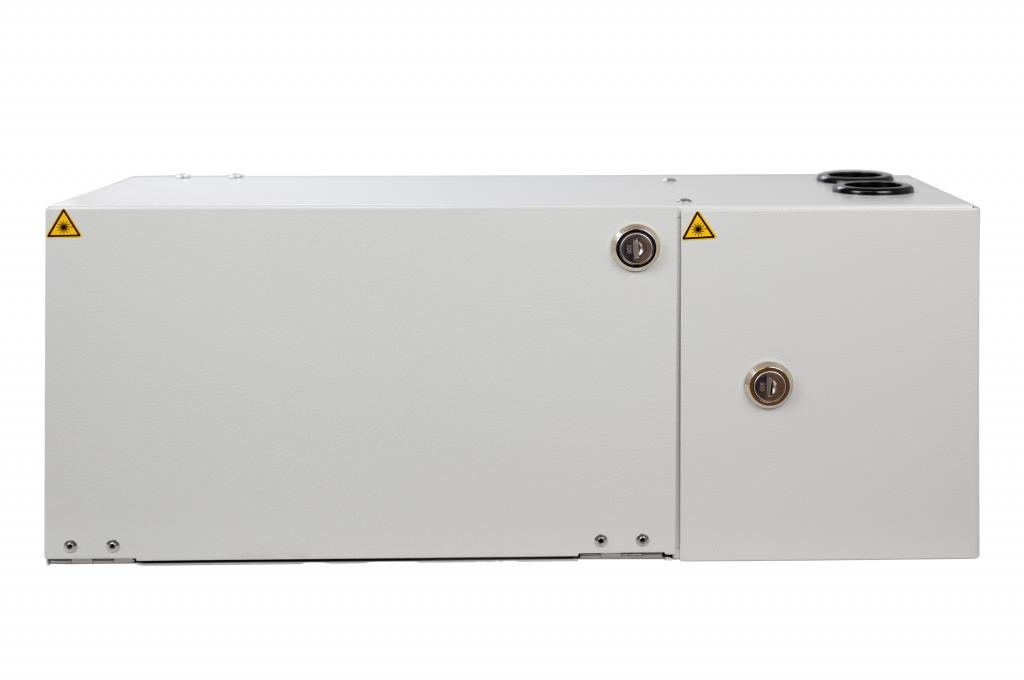

Compact metal wallbox, powder-coated

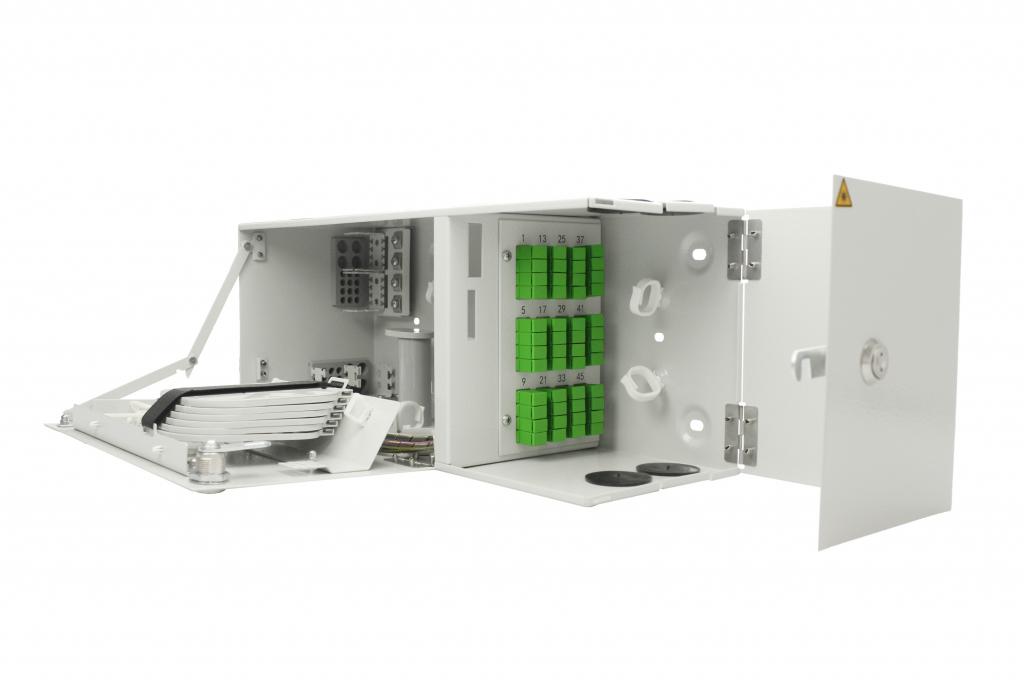

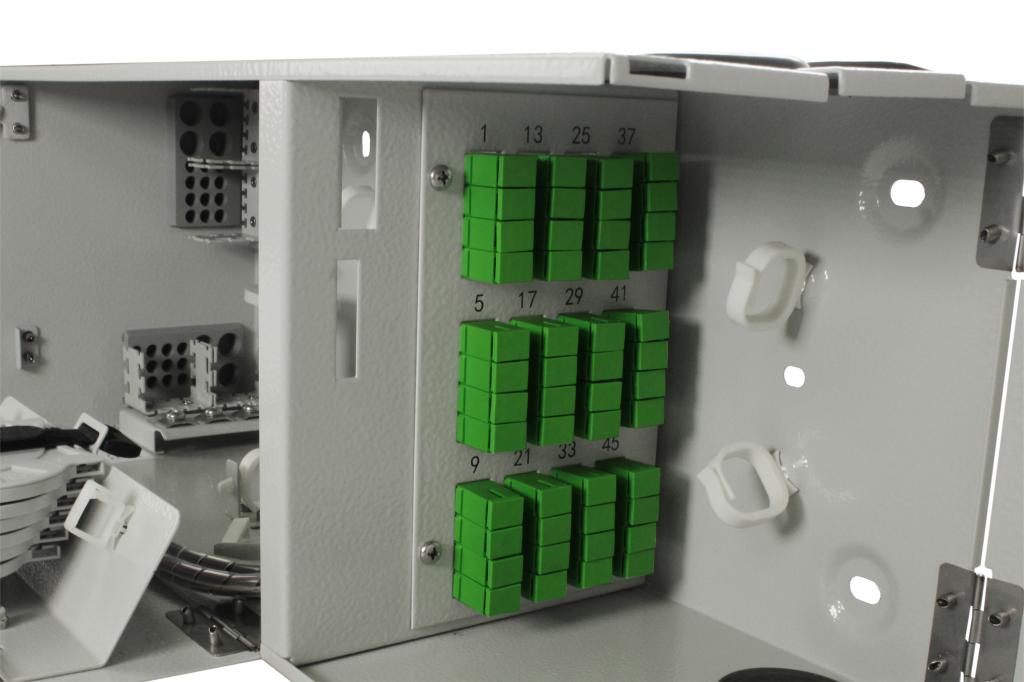

12 LC/APC quad adapters, pre-installed with 48 pigtails
Pre-installed, “ready-to-splice” with pigtails, each 8 fibers inserted into splice trays for heat shrink splice protection acc. to DIN color code. Assignment of the splice trays from bottom to top.
2 doors with separate locks
Capacity for 48 LC/APC ports, or as HD version 64 ports with quad adapters and 48 ports SC with simplex adapters

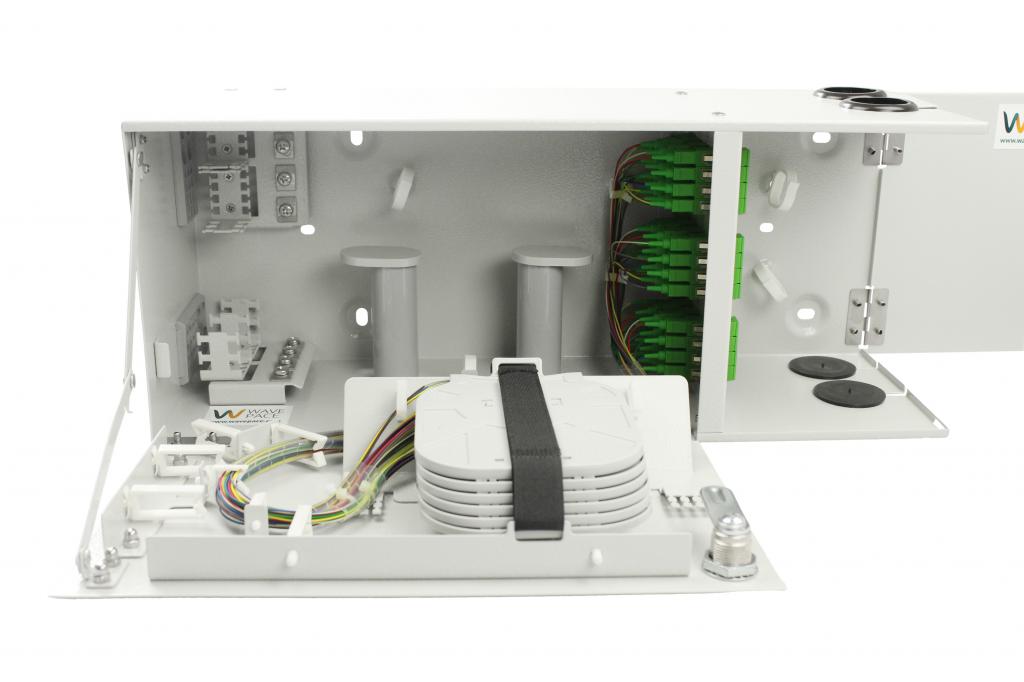

6 foldable splice trays for heat shrink splice protection, to splice up to 72 fibers
2 cable feeds and clamps on the left side, each 40 x 73 mm
Large opening angles for good access

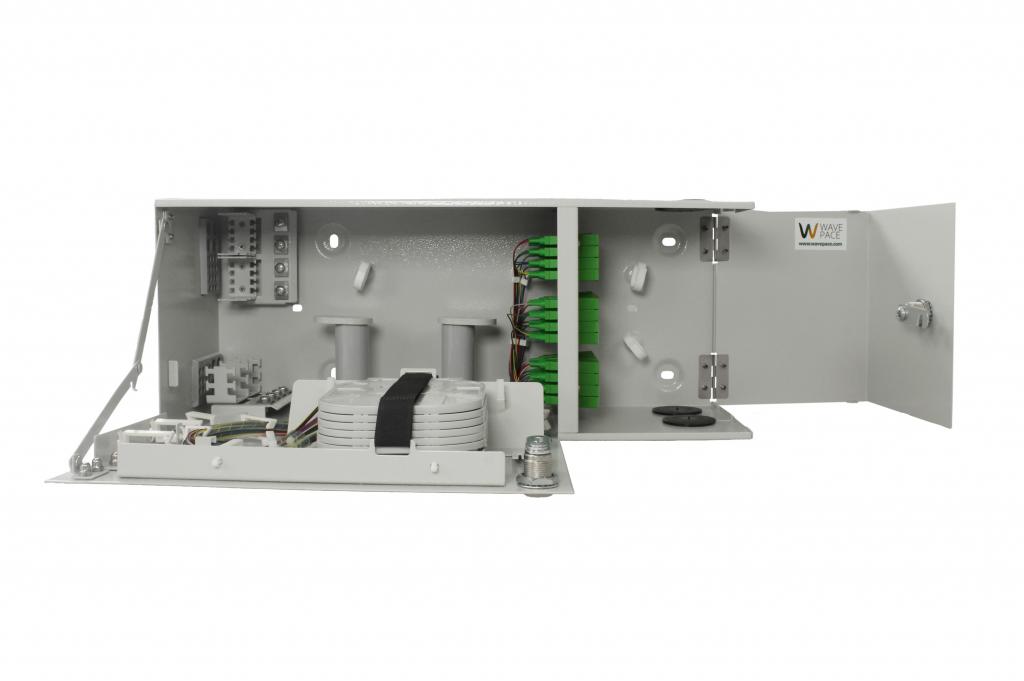

Hinged door with splice cassettes (pre-installed to be ready for splicing) can be easily opened to 90° and 180°, allowing installation directly under the ceiling
Separately accessible patch area with cable feed from below and above by inserting the patch cables
Completely pre-assembled versions available for quick on-site use
Boxes can be mounted directly on top of each other for cascading, directly or on a joint support rail
Open Access suitability
Indoor application, IP 40
