Compression IEC-connector IECF-6-TD 5.1
Compression IEC-connector IECF-6-TD 5.1Compression IEC-connector IECF-6-TD 5.1Compression IEC-connector IECF-6-TD 5.1Compression IEC-connector IECF-6-TD 5.1Compression IEC-connector IECF-6-TD 5.1Compression IEC-connector IECF-6-TD 5.1
Images may differ

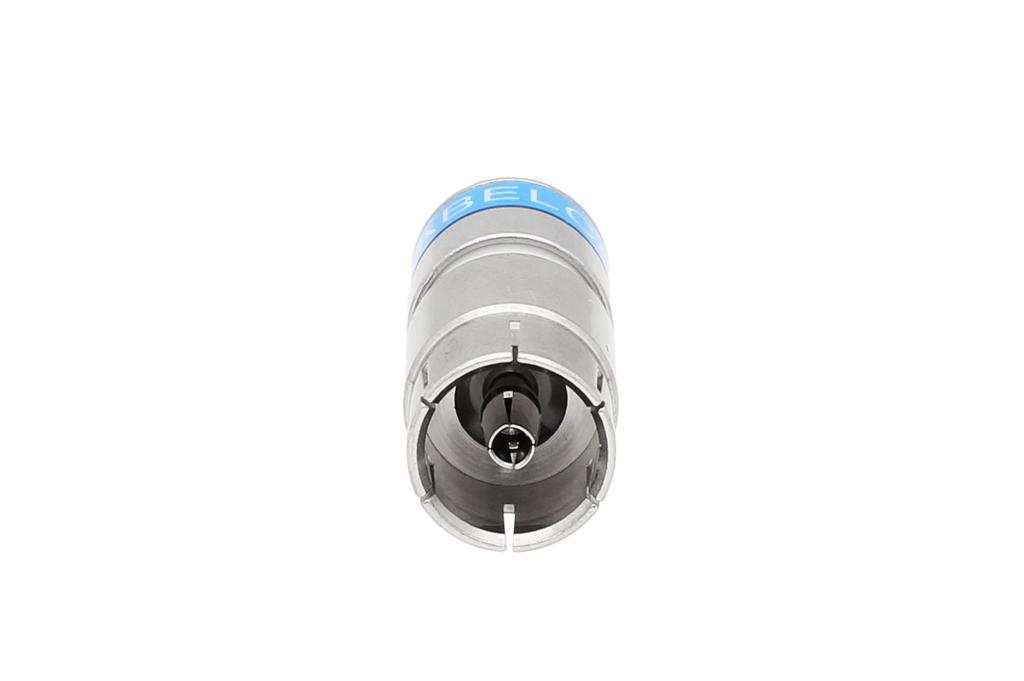

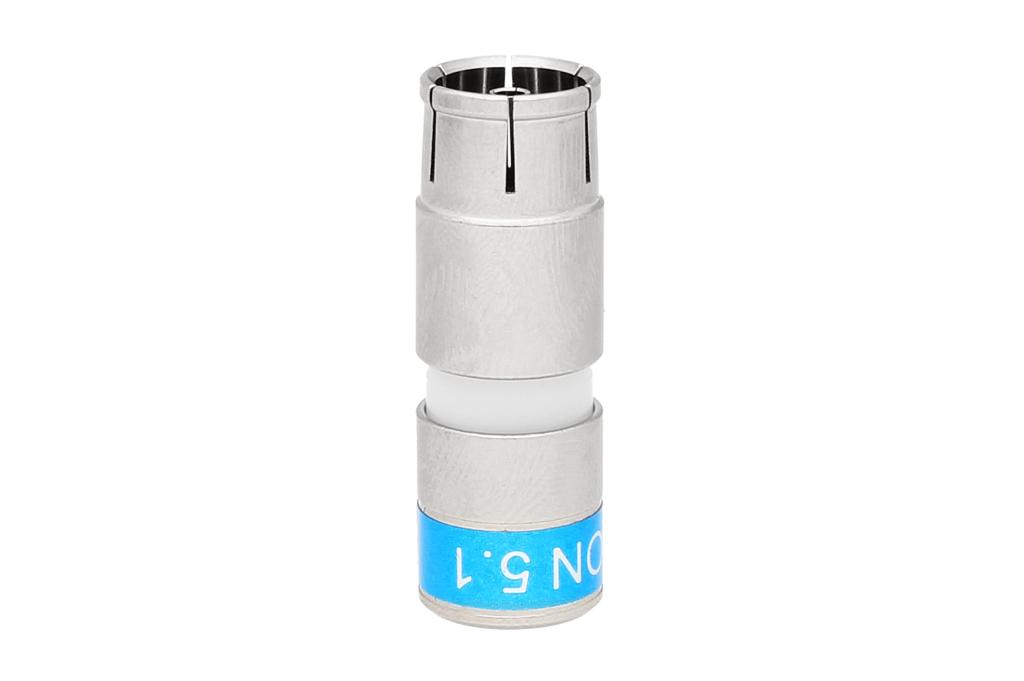

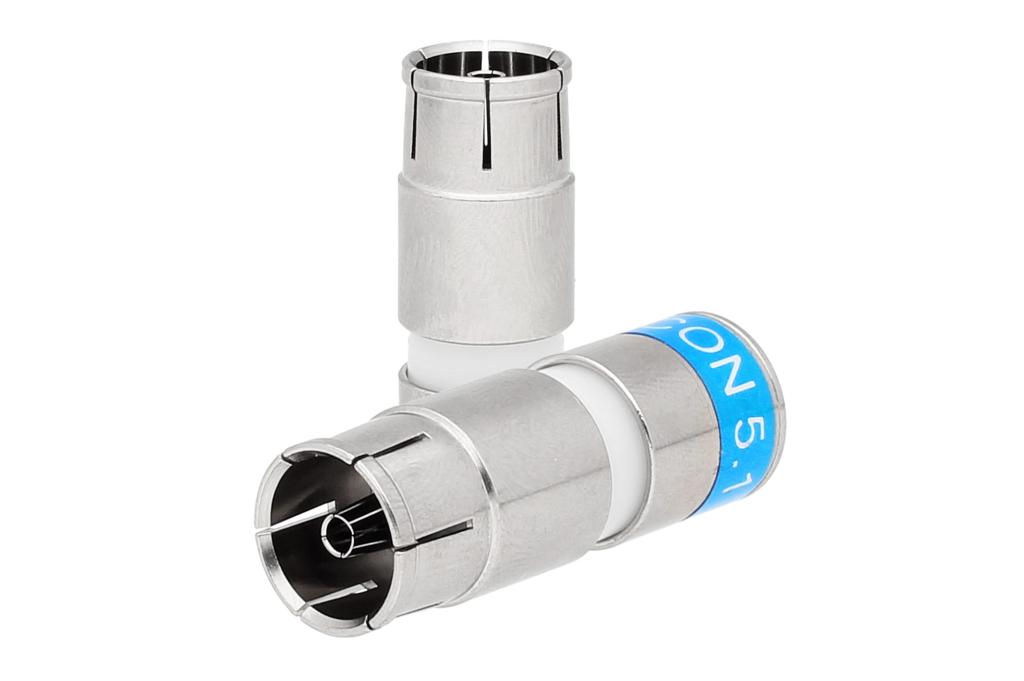

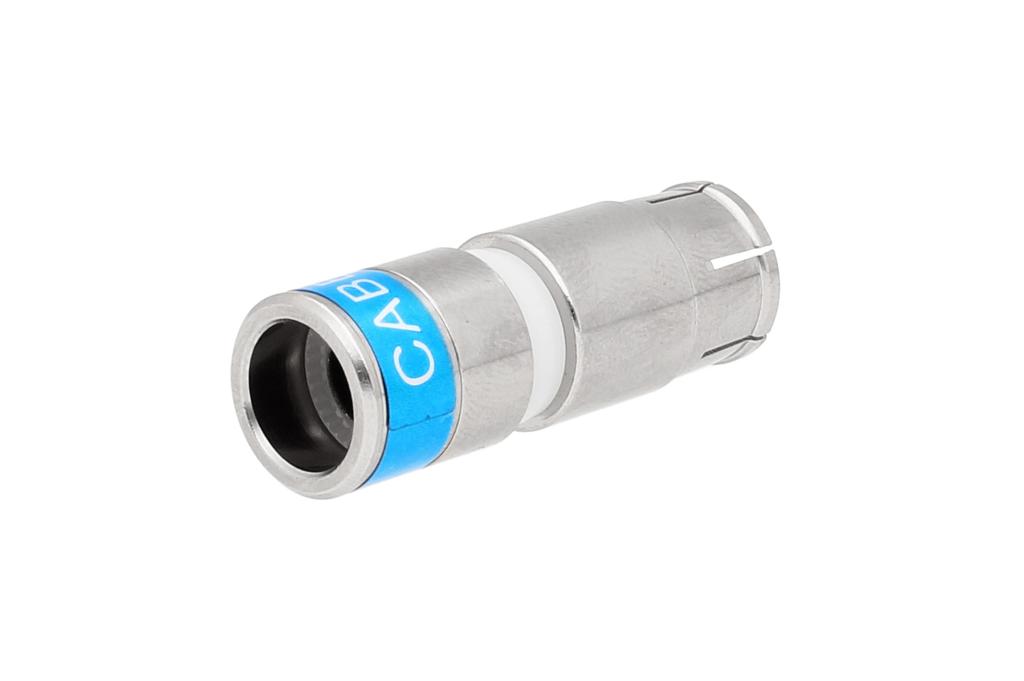

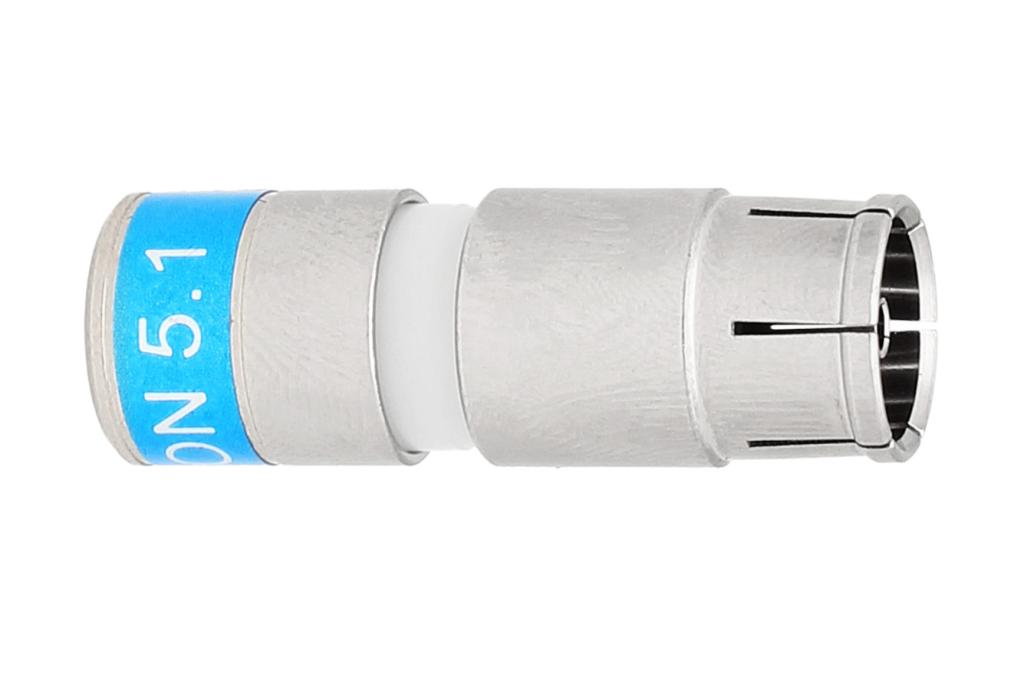

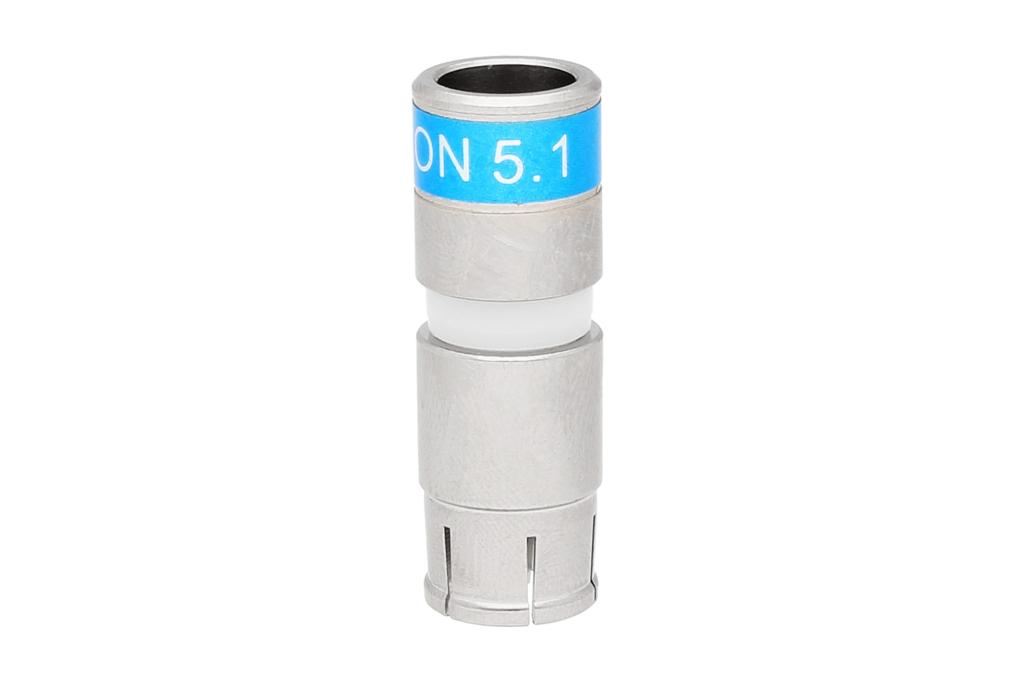

Compression IEC-connector IECF-6-TD 5.1

Product number: 54280196

Compression IEC-connector for Oren HD-113 and BKS 2050/30

Less signal noise, more user-friendliness and better overall reliability thanks to our proprietary, self-centering, conical connector interface, make TrueDrop connectors very adaptable to a variety of connection conditions, offer a uniform 360-degree contact, eliminate air gaps, reduce damage to the O-ring and counteract the rotation of the sleeve.

  • Compression connector for e. g HD-113, BKS1,1/4,8-9 and BKS 2050/30
  • Mounting only with compression tool
  • 0,3 – 3.000 MHz
  • Screening > 85 dB, Class A
  • Return loss > 24 dB
