POA-550
POA-550POA-550POA-550POA-550POA-550
Images may differ

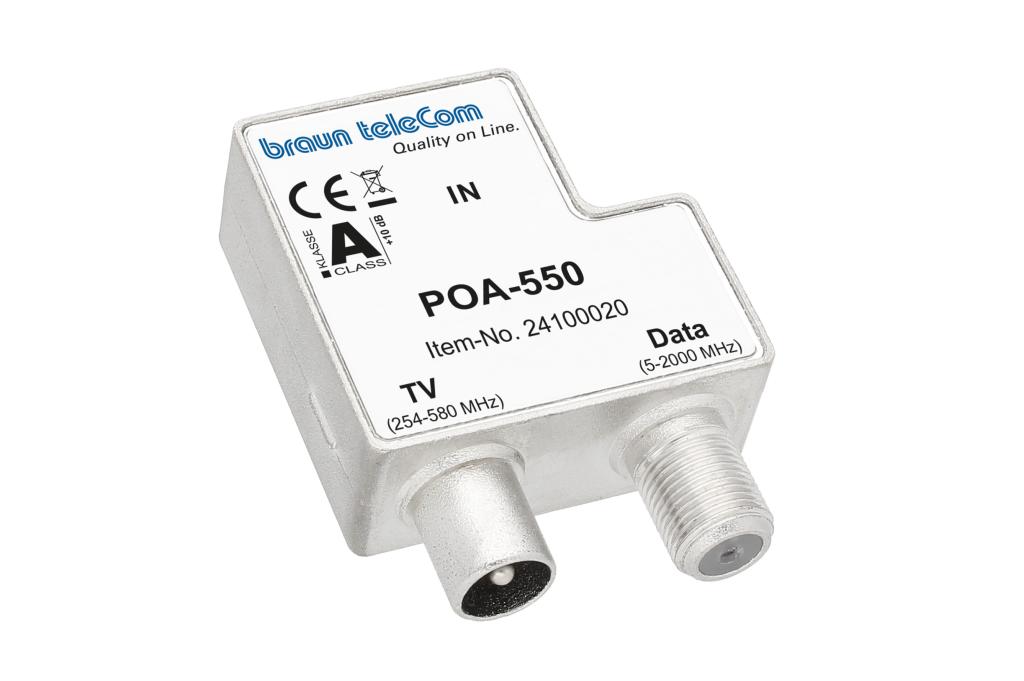

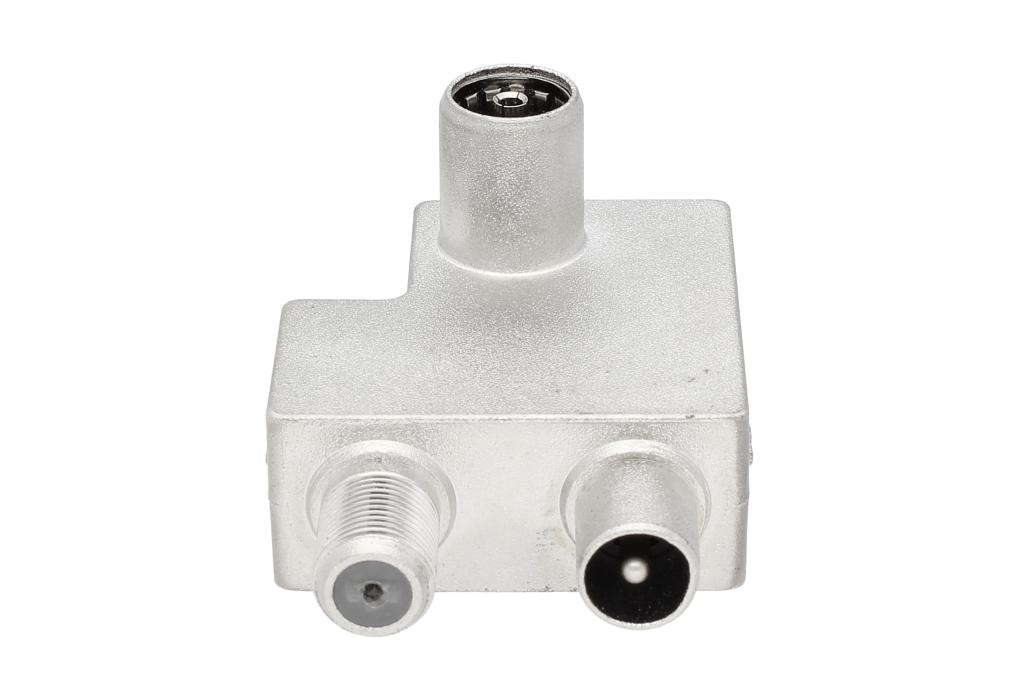

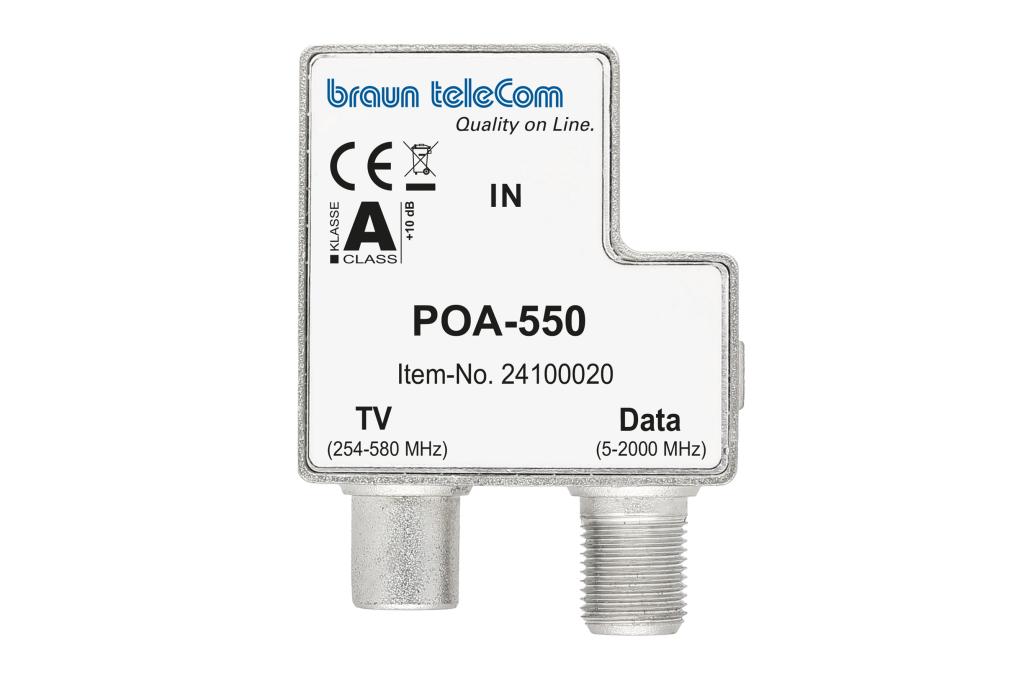

POA-550

Product number: 24100020

2-port push on adapter 5 – 2.000 MHz with band pass filter at TV port and broadband DATA port

  • Suitable for mounting onto antenna outlets with IEC-male at TV port

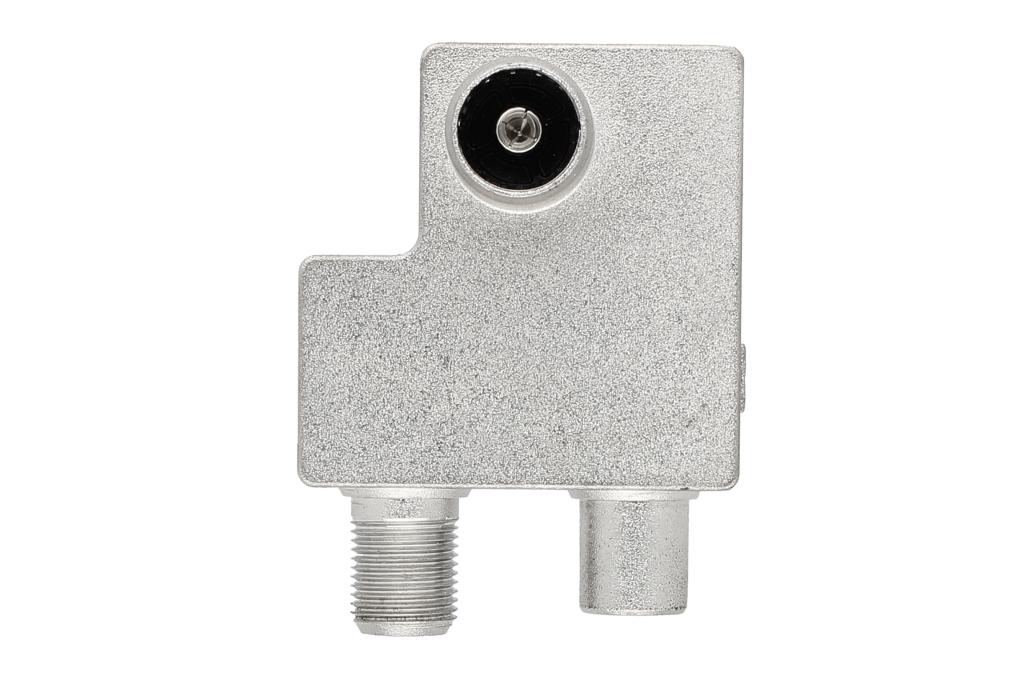

  • 1 input IEC-female at rear side
  • 2 outputs, each one IEC-male and F-female
  • Intermodulation resistant according to EN 60728-4 and after 1kV pulse applied at each port
  • High screening according to EN 50083-2 Class A +10 dB
  • Surface coated with CuSn white bronze plating, thereby corrosion resistant

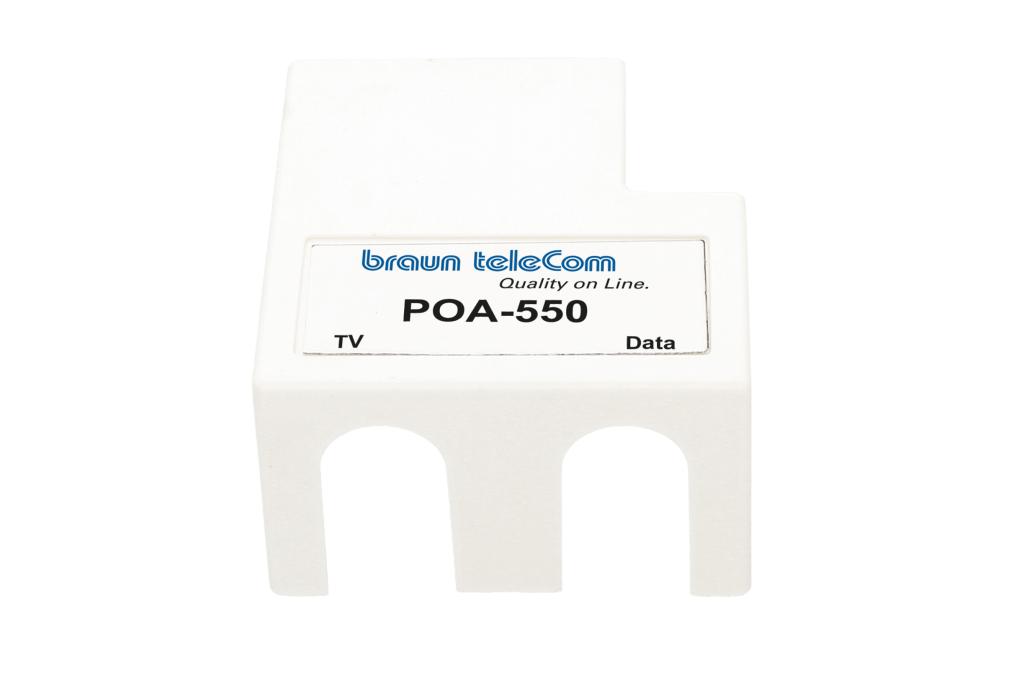

  • Supplied with a protection plastic cap (pure white RAL 9010)
  • TV/Radio port (IEC-male) with band pass filter (specifications below)
  • Data port (F-female) broadband 5 – 2.000 MHz
