BSD 967-17X

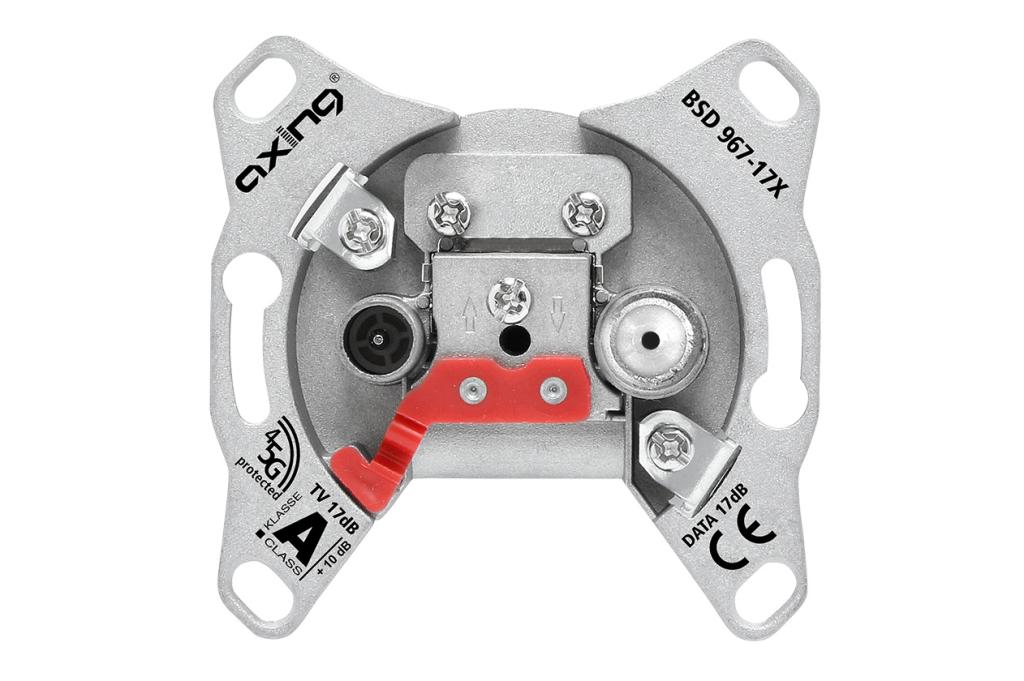

Images may differ

BSD 967-17X

Product number: 85196717

BSD 967-17X Multimedia loop-through outlet 17 dB, 5-1800 MHz

  • TV port: IEC male and insertion loss of 17 dB ± 1 dB
  • DATA port: F female and insertion loss of 17 dB ±1 dB
  • Trunk line: Through loss ≤ 1,5 - 2,5 dB
  • CATV
  • DATA
  • 2-hole
  • Class A (+10 dB) according to EN 50083-2
  • Suitable for DOCSIS 3.1/4.0 applications
  • Broadband return channel capable
  • High surge protection
  • High intermodulation resistance (≤ 115 dBc)
  • Surface treaded
  • Vodafone listed according to VF TS 142
  • 5-1800 MHz
  • Dimensions (W x H x D) approx.: 68 x 68 x 39 mm
  • Weight: 0,100 kg
